SmartStep-1K-LP/HP is a versatile stepping motor controller of the latest generation and can be utilized for the following purposes:

  • positioning
  • driving
  • conveying
  • dosing


  • food industry
  • medical technology
  • biotechnology
  • printing machines
  • test stands
  • semiconductor production
  • and many applications more

The control and power sections are located together on one board. A stepper motor can be connected directly (1K = 1 channel). Our PSC software is always included. This allows you to assemble programming blocks into program sequences on a graphical user interface using the modular principle. We will be happy to do this for you on request.

The modular and flexible concept enables comprehensive applications in different wiring techniques.

RoHS, printed circuit board according to UL, CE.

The following test specifications are met:

conducted emissions EN 55022
radiated emissions EN 55022
electromagnetic immunity EN 55024 resp. EN 61000-6-2

Areas of application for SmartStep 1K-HP


As of now, an integrated emergency power supply is also available for the SmartStep family.

This allows you, for example, to back up data in the event of a power failure, move reagents to the cooling zone and close valves safely.

Variants and accessories SmartStep-1K-LP/HP

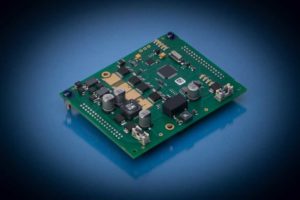

SmartStep-1K-LP (Low Power) in its original form with pin header
SmartStep-1K-LP (Low Power) in der Urform mit Stiftleiste
SmartStep-1K-LP (Low Power) with spring-loaded clamp
SmartStep-1K-LP (Low Power) mit Federkraftklemme

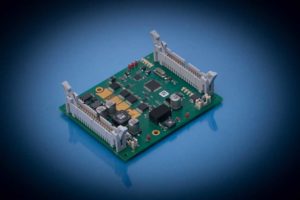

SmartStep-1K-LP (Low Power) with flat cable connection
SmartStep-1K-LP (Low Power) mit Flachkabelanschluss

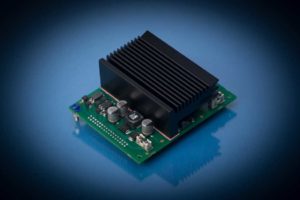

SmartStep-1K-HP (High Power)
SmartStep-1K-HP (High Power)

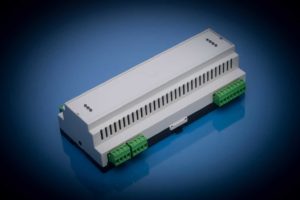

SmartStep-1K-LP/HP Hat DIN Rail
SmartStep-1K-LP/HP Hut-DIN-Schiene
SmartStep-1K-LP (Low Power) with screw terminals
SmartStep-1K-LP (Low Power) als Europa-Karte

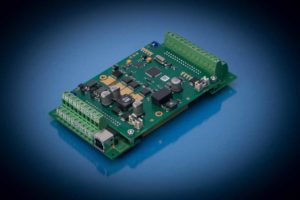

SmartStep-1K-LP (Low Power) with Screw Clamps
SmartStep-1K-LP (Low Power) mit Schraubklemmen

Software PSC

Our proven PSC (Personal Stepper Controller) control software is available as an accessory for every stepper motor controller in the SmartStep family.

Technical data SmartStep-1K-LP/HP

Download technical data sheet as PDF document

Download here
