SmartStep-1K-BP
Stepper-1K-BP is a versatile stepping motor controller of the latest generation and can be utilized for the following purposes:
- positioning
- driving
- conveying
- dosing
Applications:
- food industry
- medical technology
- biotechnology
- printing machines
- test stands
- semiconductor production
- and many applications more!
The control and power sections are located together on one board. A stepping motor can be connected directly (1K = 1 channel). Our PSC software is always included. With it, you can assemble programming blocks into program sequences on a graphical user interface using the modular principle. We will be happy to do this for you on request.
Due to its small size, the SmartStep-1K-BP can be mounted directly on the back of the stepper motor (“BackPack”).
RoHS, printed circuit board according to UL, CE.
The following test specifications are met:
conducted emissions EN 55022
radiated emissions EN 55022
electromagnetic immunity EN 55024 resp. EN 61000-6-2
Areas of application for SmartStep-1K-BP
|
SmartStep-1K-BP with housing on stepping motor
|
|
|
Due to its compact design, the SmartStep-1K-BP can be mounted directly on the stepping motor. |
Variants and accessories SmartStep-1K-BP
Variants

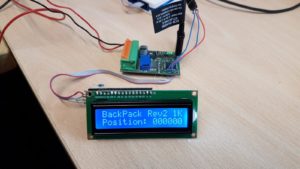

All SmartStep controllers can now be connected to a display via the Expansion port.

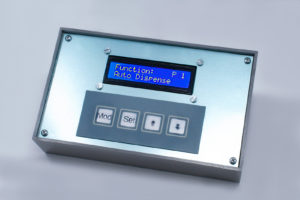

Together with a few buttons, this creates a menu control.
Technical data SmartStep-1K-BP
Download technical data sheet as PDF document
